Electronic Ignition Conversion Kit
Delco 6-cylinder, Non-Vacuum-Advance Distributors
Replaces Entire Breaker Plate - Simple to Install.
The Hot-Spark electronic ignition conversion kit replaces breaker points and condenser in the distributor to provide rock-solid reliability. With the Hot-Spark electronic ignition, dwell and timing are always spot-on accurate.
No matter how strong your engine is, you won't get the most out of it without a good spark. The stock points-based ignition system used technology that dates back a century - to the Kettering system, which was introduced in the 1910 Cadillac. Even though you can adjust breaker points for near-electronic ignition performance, they will burn and wear within a few thousand miles, long before the recommended replacement interval. With points, the timing will drift; power and fuel economy will suffer.
The Hot-Spark electronic ignition conversion kit delivers a strong spark every time and is maintenance-free. You'll notice quicker starts, more top end power and a little gas mileage boost. It's as easy to install as points and condenser!
Advantages of the Hot-Spark electronic ignition conversion kit:
Replaces points and condenser with solid-state electronics
Set it and forget it - Never adjust points and timing again!
Delivers far more voltage to the spark plugs than points-based points
Reliable Hall-effect technology
Never gets out of adjustment
Dwell and timing are always spot-on accurate
Increased gas mileage, fuel economy
Longer spark plug life
Longer engine life
Cleaner engine oil due to less unburned fuel
Longer interval between oil changes
Easy to install - If you can install points, you can install the Hot-Spark electronic ignition conversion
No points to wear, burn, pit or corrode
No condenser needed
Absolutely no points float - zero - even at redline RPM and beyond!
Never worry about drifting dwell or timing again
No rubbing parts - nothing to wear out!
Fits completely under the distributor cap
Stealth modification - maintains stock appearance
Includes everything you need, no external ignition box required.
Works with stock distributor and coil
Encased in high-temp thermoplastic - protected from the elements and oil, grease, dirt, water, etc.
Never bother with points or condenser again!
The best investment you'll ever make for your vehicle
Saves precious ($$$) fuel
Coil with 3.0 Ohms or more internal, primary resistance required.
The Bosch Black Coil is ideal for HotSpark ignition kits.
Requires a 12-volt, negative ground electrical system.
External Ballast Resistor: If the charging system voltage, measured at the coil's + terminal, is more than 13.9 volts at any RPM level, the voltage regulator likely needs replacing or a 1.4 Ohm ballast resistor should be wired between the coil's + terminal and the red HotSpark ignition wire. Too much voltage can damage the ignition module and other electronic components.
How many miles until the Hot-Spark electronic ignition conversion kit pays for itself? Click here
Measuring Coil Resistance (and more): www.Hot-Spark.com/Coil.htm
3DEL6U1 Electronic Ignition Conversion Kit
for Centrifugal-advance 6-cylinder Delco Distributors
3DEL6U1 Electronic Ignition Conversion Kit
For aluminum-bodied Delco 6-cylinder distributors with screw-down distributor cap and without vacuum advance. NOT for early cast-iron Delco or Delco-Remy distributors.
The 3DEL6U1 ignition kit fits ONLY the following 6-cylinder Delco
centrifugal-advance distributors: 980156
distributor part number (located on the side of the distributor body) is not
listed above, this ignition kit
If your distributor part number (located on the side of the distributor body) is not listed above, this ignition kitWON'T FIT your distributor, even if the photos KIND OF look like your distributor.
Please note that SAE J1171 and UL 428D
are NOT distributor part numbers, but simply US government standards that many
completely different distributors meet. These numbers are of almost no use in
determining which distributor you have or what ignition kit you need. Usually,
the Delco distributor part number will be on the opposite side of the
6-Cylinder Models E, E-111, K, Delco 1112479, 640 Delco - 3DEL6U1
6-Cylinder F, G262, B, GB230, G250, G292 engine, Delco 1112461, 1112479, 1112640 - 3DEL6U1
6-Cylinder G, 2800 (gas engine), Delco 1112472 - 3DEL6U1
6-Cylinder K, 6-250, 6-232 engine, Delco 1112479 - 3DEL6U1
6-Cylinder 226, Delco 1112668 - 3DEL6U1
6-Cylinder 180, 190XT, 200, Delco 1112668 - 3DEL6U1
6-Cylinder 190 (G-2500 gas, LPG engine ), Delco 1111311, 1112653, 1111667 - 3DEL6U1
1970-71 6-Cylinder UB-220, 265 Power Unit, Delco 1112471 - 3DEL6U1
1970-71 6-Cylinder UR-450, UV-450, Delco 1112473 - 3DEL6U1
1970-73 6-Cylinder H30B, F, R Payloader, Delco 1112471 - 3DEL6U1
6-Cylinder 557CP (GM 305C), Delco - 3DEL6U1
6-Cylinder 95, 105, Delco 1112466 - 3DEL6U1
6-Cylinder Combine 4400, 7700, Delco 1112466, 1112640 Delco - 3DEL6U1
6-Cylinder 4400SP, Delco 1112640 - 3DEL6U1
6-Cylinder 6602,7700SP, Delco 1112466 - 3DEL6U1
6-Cylinder 600, 700, Delco 1112624 Delco - 3DEL6U1
6-Cylinder 4000, 4010, Delco 1112624 - 3DEL6U1
6-Cylinder 4020, Delco 1112466, 1112624 - 3DEL6U1
6-Cylinder Harvester H-7, Delco 1112466 - 3DEL6U1
6-Cylinder MF410 GMC 292, Delco - 3DEL6U1
6-Cylinder MF-1100, MF-1105 (gas and LPG engine), Delco 1112687, 1112696 - 3DEL6U1
6-Cylinder MF-410-292 engine, Delco 1112479, 1112640 - 3DEL6U1
6-Cylinder G-704, Delco 1112662, 1112684 - 3DEL6U1
6-Cylinder G-1000, G-1050, G-1350, 30, Delco - 3DEL6U1
6-Cylinder 1600, Delco 1112632 - 3DEL6U1
6-Cylinder 1800, Delco 1112632 - 3DEL6U1
White Farm Equipment Co.
6-Cylinder All, Delco - 3DEL6U1
1967-69 6-Cylinder TL545 Tractor Loader, Delco 1112668, 1111311 - 3DEL6U1
1969-73 6-Cylinder F60, 70, 80, 100, 120, FP60, 70, 80, Delco 1112461 - 3DEL6U1
1969-74 6-Cylinder G262, Delco 1112461 - 3DEL6U1
1973-74 6-Cylinder All AC-C, AC-P Series, Delco 1112461 - 3DEL6U1
1952-66 6-Cylinder All models, Delco - 3DEL6U1
1964-65 6-Cylinder C-60; CY-60; CFY-60 21, Delco 1112628 - 3DEL6U1
1966 6-Cylinder CT-20, 30, 40, 50; UT- 60, 70, 80, 100 21, Delco1112672 - 3DEL6U1
1966 6-Cylinder HUT-60, 70, 80, 100; Y60, 100 21, Delco 1112672 - 3DEL6U1
1966-70 6-Cylinder C60, 70, 80; CF-60, 70, 80; CH-60, 70, 80 CY-60, 70, 80 21, Delco 1112672 - 3DEL6U1
1966-71 6-Cylinder C-100, 120; CY-100, 120; Ranger 40, 60 21, Delco 1112672 - 3DEL6U1
1967-69 6-Cylinder IT-60 21, 1112672 Delco - 3DEL6U1
1972-78 6-Cylinder C-500H-60, 70, 80; C500-100, 200 21, Delco 1112672 - 3DEL6U1
1972-78 6-Cylinder C-500Y-100, 130, 150; Ranger 40, 60 21, Delco 1112672 - 3DEL6U1
6-Cylinder F6 engine 21, Delco - 3DEL6U1
1965-66 6-Cylinder Straddle Truck & Lift Truck, Delco 1110317 - 3DEL6U1
1967-78 6-Cylinder Lift Truck, Delco - 3DEL6U1
1962-70 6-Cylinder 600, 4020 Series Tractor, Delco 1112624 - 3DEL6U1
1971-72 6-Cylinder 420, Delco 1112466 - 3DEL6U1
6-Cylinder MF1100, MF1105 (Waukesha F320G, LPG), Delco - 3DEL6U1
1963-64 6-Cylinder HD-504-6A, 800-6A Power Unit, Delco 1112638 - 3DEL6U1
1965-68 6-Cylinder HD-504A-6A, 605A-6A, 800-6A Power Unit, Delco 1112638 - 3DEL6U1
1969-71 6-Cylinder HD-425-6A, 504A-6A, 605B-6A, 800-6A Power Unit, Delco 1112638 - 3DEL6U1
1965-72 6-Cylinder 701, 702 Power Unit, Delco - 3DEL6U1
Newark Ohio Co.
6-Cylinder 701 Power Unit (Continental F245 engine) , Delco 1111310 - 3DEL6U1
Terex Division (G.M.C.) (with Continental engine)
1972 6-Cylinder 540, 600, 670, 760-P, 860-P, 960-PLT, Delco 1112444 - 3DEL6U1
1972 6-Cylinder V-30, 40, 41, 50, 51, 60, Delco 1112444 - 3DEL6U1
1962 6-Cylinder Lift Truck; 850, 950, Delco 1112622, 630 - 3DEL6U1
1972 6-Cylinder Continental F227 engine, Delco 1112444 - 3DEL6U1
1972 6-Cylinder Lift Truck; 540, 600, 670, 760P, 860P, 960PLT, Delco 1112444 - 3DEL6U1
1972 6-Cylinder V30, 40, 41, 50, 51, 60, Delco 1112444 - 3DEL6U1
1963-66 6-Cylinder 190, Delco 1112682 - 3DEL6U1
1967-70 6-Cylinder 265G, 283, Delco 1112682 - 3DEL6U1
1968-70 6-Cylinder 320G, LPG, Delco 1112687, 696 - 3DEL6U1
1968-73 6-Cylinder F-554G Standard, Delco 1112465 - 3DEL6U1
1968-82 6-Cylinder F-817G, F1197G Standard, Delco 1112465 - 3DEL6U1
6-Cylinder 135GZ, Delco 1112462 - 3DEL6U1
6-Cylinder 195GK, F320G, Delco 1112687 - 3DEL6U1
1969-74 6-Cylinder MA20 thru MA100, WC-20, 30, 40, 50, Delco 1112444 - 3DEL6U1
1975-81 6-Cylinder MA60H, 70, 80, 90, 100, 120 Lift Truck, Delco 1112444 - 3DEL6U1
6-Cylinder 140, From Serial 1538930 to 1725960 Delco - 3DEL6U1
6-Cylinder 150, From Serial 1666495 to 2048046 Delco - 3DEL6U1
6-Cylinder 160, From Serial 2048022 to 2770031 Delco - 3DEL6U1
6-Cylinder 165, From Serial 2770032 Delco - 3DEL6U1
6-Cylinder Alpha 1/120-140, From Serial 6229718 Delco - 3DEL6U1
6-Cylinder 200, From Serial 2453769 to 2712072 Delco - 3DEL6U1
1964-66 6-Cylinder 150 HP, Delco 1110309, 1110322 - 3DEL6U1
1972-76 6-Cylinder 165 HP, Delco 980156 - 3DEL6U1

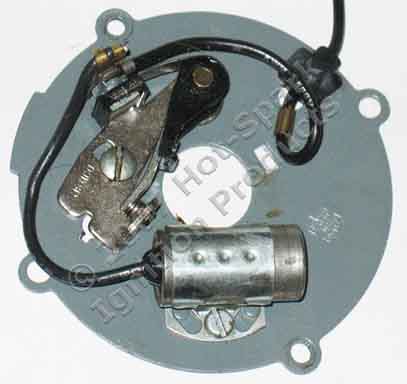

The Hot-Spark 3DEL6U1 replaces this entire Delco centrifugal-advance breaker plate:
Before ordering, please compare the points and breaker plate of your distributor to the above photos of breaker plate, points and distributor to make sure that this ignition kit is the right one for your distributor. If your distributor has a vacuum-advance mechanism, this ignition kit won't fit it.
Our electronic ignition conversion kits are not "one-size-fits-all." Your engine could have any number of different distributors. We'll need the number of cylinders and the brand and part number of your distributor to determine which ignition kit would fit it or whether we have an ignition kit for it at all. Supplying just the make and model of vehicle or engine is usually not sufficient to determine which ignition kit will fit. The Delco part number is stamped into the side of the distributor body, and is usually covered with dirt and grease.
Latest On-Line Installation Instructions:
Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding/buying.
IMPORTANT -- BEFORE ORDERING: Some distributors of vehicles, boats, etc. may
differ, according to whether the stock distributor is still in place or a
replacement distributor has been installed. Some otherwise similar or identical
engines use different distributor brands and/or different distributor part
numbers. We need your distributor's brand name, distributor part number and
number of engine cylinders to ensure that the electronic ignition conversion kit
is correct one for your particular distributor.
If your distributor part number, normally found on the side of the distributor body, is not among those listed on the relevant web page, chances are, the HotSpark ignition conversion kit won't fit your distributor.
It's imperative that we know your distributor's brand name, distributor part number and the number of cylinders of your engine. You may need to remove the distributor temporarily, so that you can read the distributor part number from the side of the distributor body. Usually, the side of your distributor will be covered with oil and dirt, so you'll need to clean it to find the distributor brand name and exact part number.
We can guarantee only that each of our ignition kits will fit a distributor with one of the distributor part numbers listed on its relevant web page. Otherwise, it likely won't fit. HotSpark ignition kits require a 12-volt, negative ground (earth) electrical system.
If you order the wrong electronic ignition conversion kit for your distributor, you'll need to return it to us, via US Postal Service mail within 30 days from date of purchase. If the ignition kit is in perfect, unused condition, we can accept it as a retuned item, within 30 days of purchase, and provide a refund to your payment account, less a 25% restocking fee and any international shipping fees, etc., but only if the ignition kit is in pristine, unused condition. Buyer is responsible for shipping and other costs to return the product for credit or exchange.
Electronic Ignition Conversion Kit for 6-cylinder Delco non-vacuum-advance Distributors
Easy to Install -
Replace Points and Condenser
Electronic Ignition Conversion Kit. Replaces points and condenser in many 6-cylinder, Delco centrifugal-advance distributors.
3.4 Ω primary resistance
3.4 Ohms primary resistance
Ideal for Use with Hot-Spark Electronic Ignition Conversion Kits with red 3-series ignition module or for use with breaker points.
Heavy-duty coil with 3.3 Ohms primary resistance. Ideal for points or electronic ignition. Produces strong, blue spark at the
|HS14BR||Hot-Spark 1.4 Ω Heavy-Duty Ceramic External Ballast Resistor|
1.4 Ohm Ballast Resistor - Ideal for Use with Electronic Ignition and High-Voltage Charging Systems
Also reduces burning and pitting of contact breaker points.
Ω heavy-duty, external
ceramic ballast resistor - installed between coil's + terminal and condenser
or HotSpark ignition's red wire. Lowers amperage to points or ignition module,
ensuring trouble-free operation. Installed on engine
firewall or on coil. Ideal for use with high-voltage charging systems and
electronic ignition or points.
Recommended for use with
high-voltage charging systems. Typically lowers current @ 3,000 RPM by
about 0.5 amps. Supplements
original stock coil.
Also extends the life of points when
used with points-based ignition systems. Reduces burning
and pitting of points.
Recommended for use with high-voltage charging systems. Typically lowers current @ 3,000 RPM by about 0.5 amps.
Supplements original stock coil.
Also extends the life of points when used with points-based ignition systems. Reduces burning and pitting of points.
